Bike Rack Specifications

Choose between electric assist and gas assist loading options for our upright bike racks . Prices from £2675.00 including free fitting.

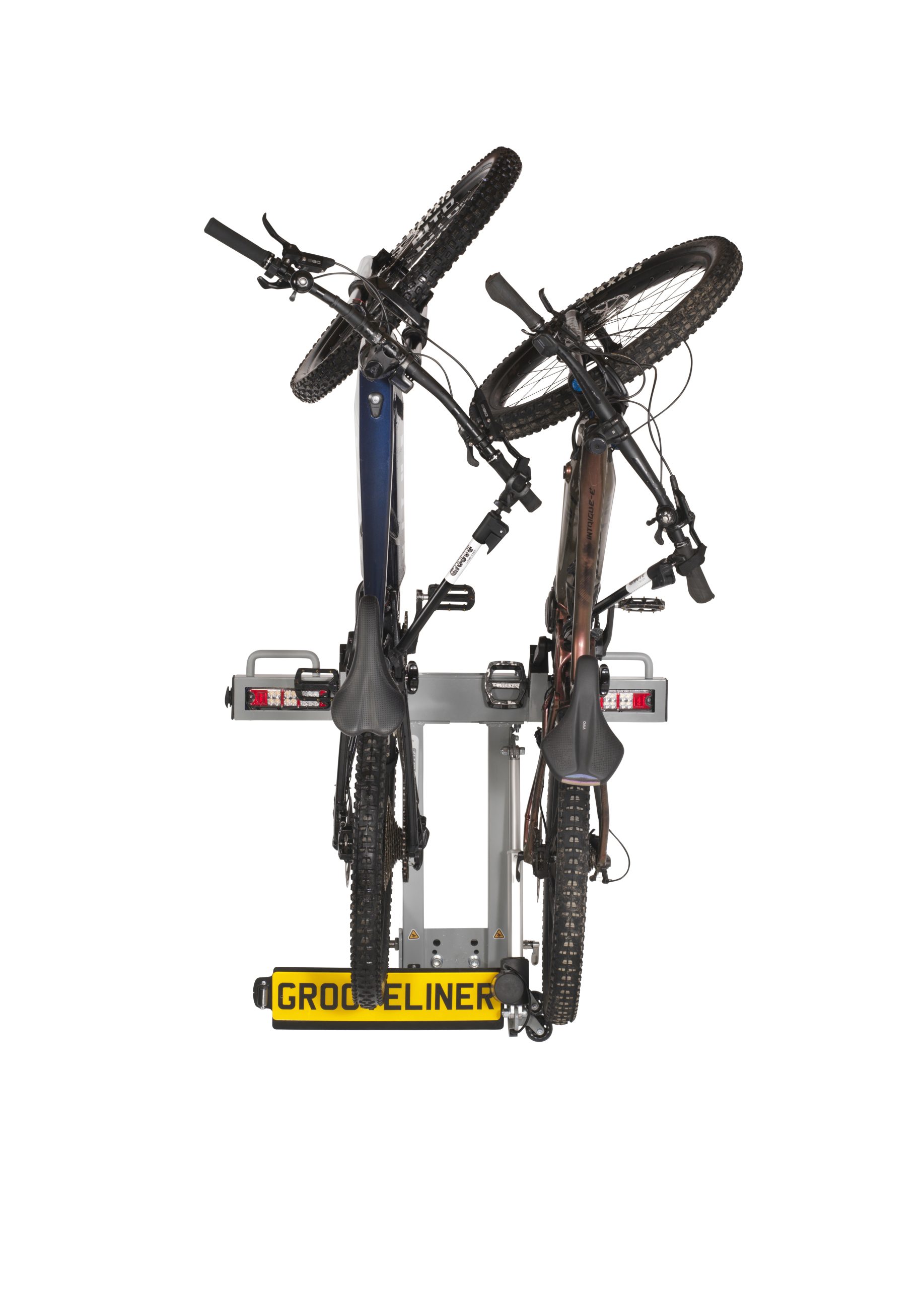

Grooveliner ®  Two Bike Rack

Please contact us for a free consultation before purchase. We offer a free fitting service at our location in Cheshire. If this does not suit please contact us for alternative options.
*All hitch styles available as an optional accessory, total load capacity of any of our racks is reduced to 70kg (154lbs) with towball mount.



Select Your Options:

Specifications

Max Number of bikes or useable grooves
Two
Rack Weight
Electric assist loading rack is: 24kg / 53lbs, Gas assist loading rack is: 22kg
Load Capacity (excluding ball mount)
80kg total  / 40kg per crank groove
Dimensions in mm |without hitch attachment|
900w x 910h x 320d
Max Tyre Width
3 inches
Max wheelbase
1500mm or greater
Detachable Handlebar holders
Yes
Distance Between bikes
> 29 cm (11.5 inches)
Rear Wheel Fixation
Quick release ratchet straps
Fits car with spare rear tyre
Yes
Rack Tilt function with bikes
Yes assisted loading
Rear Rack lighting
Yes
Power Connector
13 Pin EU / UK and rest of World
USA 7 Pin standard connector
Lockable to Vehicle
Yes
Hitch requirements
Flange Mount Towbar / Hitch or Two Inch American Style Receiver, Tow ball mount*
Specification subject to change without notice

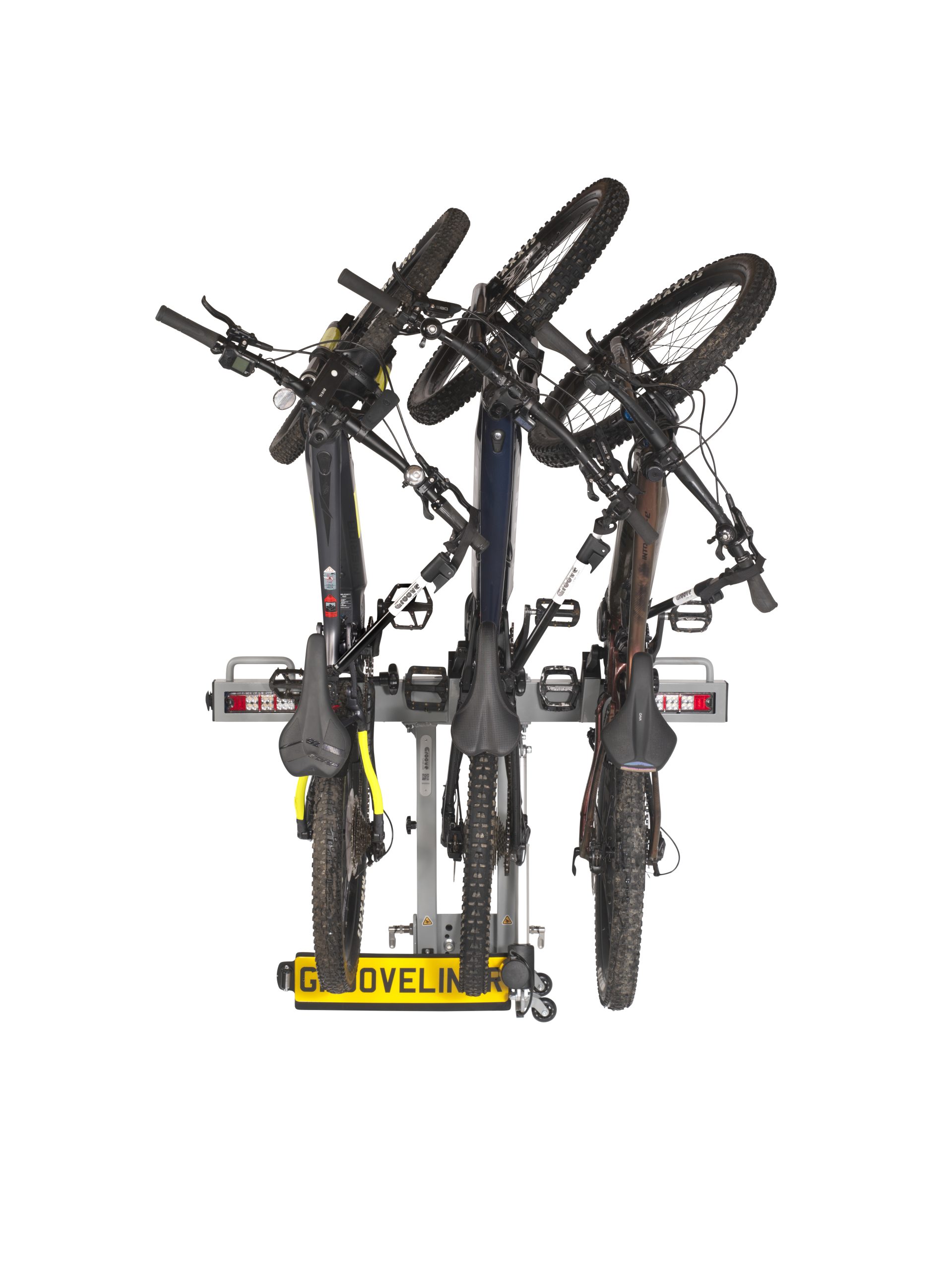

Grooveliner ®  Three Bike Rack

Please contact us for a free consultation before purchase. We offer a free fitting service at our location in Cheshire. If this does not suit please contact us for alternative options.
*All hitch styles available as an optional accessory, total load capacity of any of our racks is reduced to 70kg (154lbs) with towball mount.



Select Your Options:

Specifications

Max Number of bikes or useable grooves
Three
Rack Weight
Electric assist loading rack is: 24kg / 53lbs, Gas assist loading rack is: 22kg
Load Capacity (excluding ball mount)
40kg per crank groove
Dimensions in mm |without hitch attachment|
1100w x 910h x 320d
Max Tyre Width
3 inches
Max wheelbase
1500mm or greater
Detachable Handlebar holders
Yes
Distance Between bikes
> 29 cm (11.5 inches)
Rear Wheel Fixation
Quick release ratchet straps
Fits car with spare rear tyre
Yes
Rack Tilt function with bikes
Yes assisted loading
Rear Rack lighting
Yes
Power Connector
13 Pin EU / UK and rest of World
USA 7 Pin standard connector
Lockable to Vehicle
Yes
Hitch requirements
Flange Mount Towbar / Two Inch American Style Receiver, Tow ball mount.
Specification subject to change without notice



Grooveliner ®  Four Bike Rack

Please contact us for a free consultation before purchase. We offer a free fitting service at our location in Cheshire. If this does not suit please contact us for alternative options.
*All hitch styles available as an optional accessory, total load capacity of any of our racks is reduced to 70kg (154lbs) with towball mount.



Select Your Options:

Specifications

Max Number of bikes or useable grooves
Four
Rack Weight
Electric assist loading rack is: 24kg / 53lbs, Gas assist loading rack is: 22kg
Load Capacity (excluding ball mount)
40kg per crank groove
Dimensions in mm |without hitch attachment|
1400w x 910h x 320d
Max Tyre Width
3 inches
Max wheelbase
1500mm or greater
Detachable Handlebar holders
Yes
Distance Between bikes
> 29 cm (11.5 inches)
Rear Wheel Fixation
Quick release ratchet straps
Fits car with spare rear tyre
Yes
Rack Tilt function with bikes
Yes assisted loading
Rear Rack lighting
Yes
Power Connector
13 Pin EU / UK and rest of World
USA 7 Pin standard connector
Lockable to Vehicle
Yes
Hitch requirements
Flange Mount Towbar / Two Inch American Style Receiver, Tow ball mount*
Specification subject to change without notice

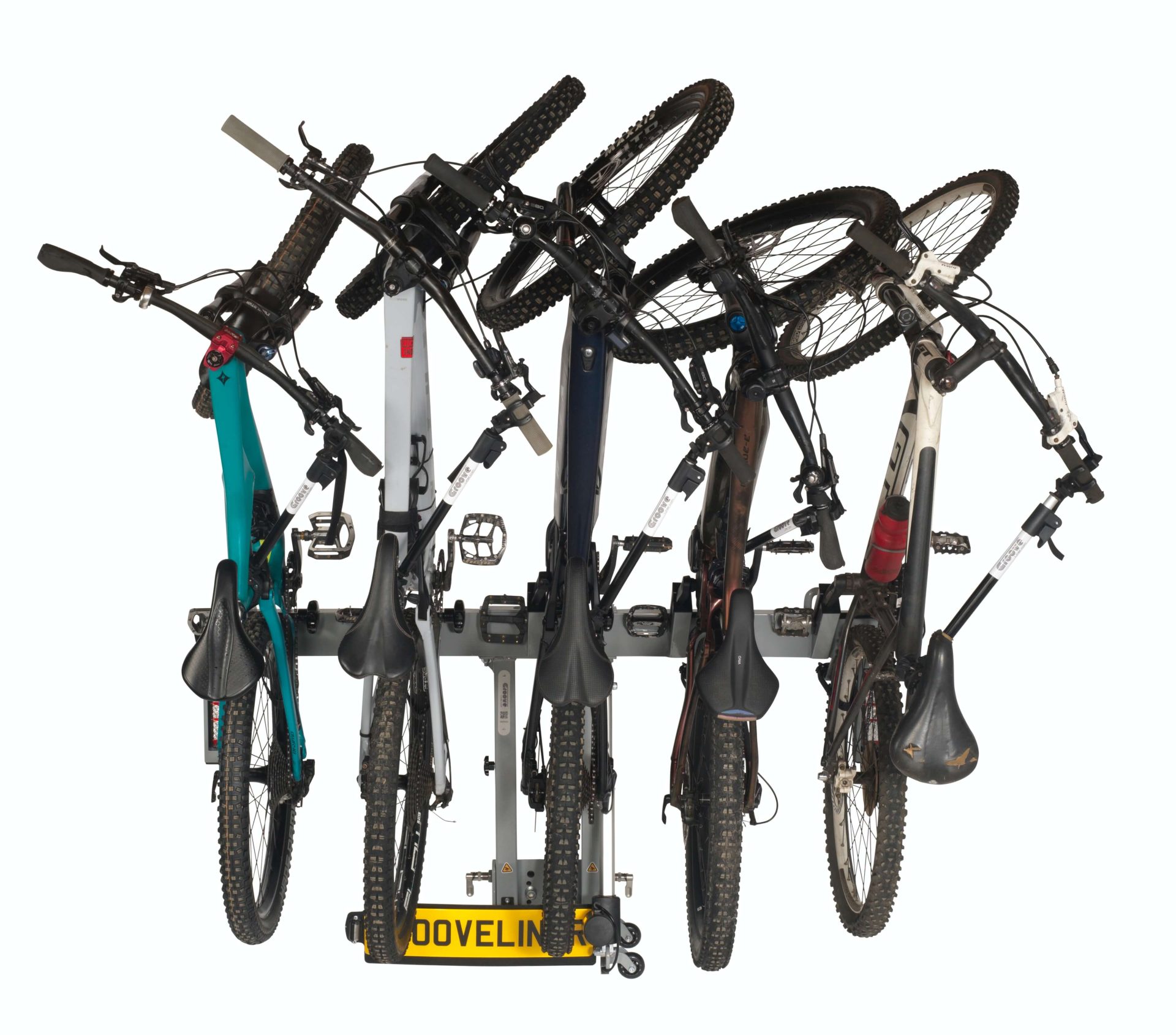

Grooveliner ®  Five Bike Rack

Please contact us for a free consultation before purchase. We offer a free fitting service at our location in Cheshire. If this does not suit please contact us for alternative options.
*All hitch styles available as an optional accessory, total load capacity of any of our racks is reduced to 70kg (154lbs) with towball mount.



Select Your Options:

Specifications

Max Number of bikes or useable grooves
Five
Rack Weight
Electric assist loading rack is: 24kg / 53lbs, Gas assist loading rack is: 22kg
Load Capacity (excluding ball mount)
40kg per crank groove
Dimensions in mm |without hitch attachment|
1600w x 910h x 320d
Max Tyre Width
3 inches
Max wheelbase
1500mm or greater
Detachable Handlebar holders
Yes
Distance Between bikes
> 29 cm (11.5 inches)
Rear Wheel Fixation
Quick release ratchet straps
Fits car with spare rear tyre
Yes
Rack Tilt function with bikes
Yes assisted loading
Rear Rack lighting
Yes
Power Connector
13 Pin EU / UK and rest of World
USA 7 Pin standard connector
Lockable to Vehicle
Yes
Hitch requirements
Flange Mount Towbar / Two Inch American Style Receiver, Tow ball mount*
Specification subject to change without notice

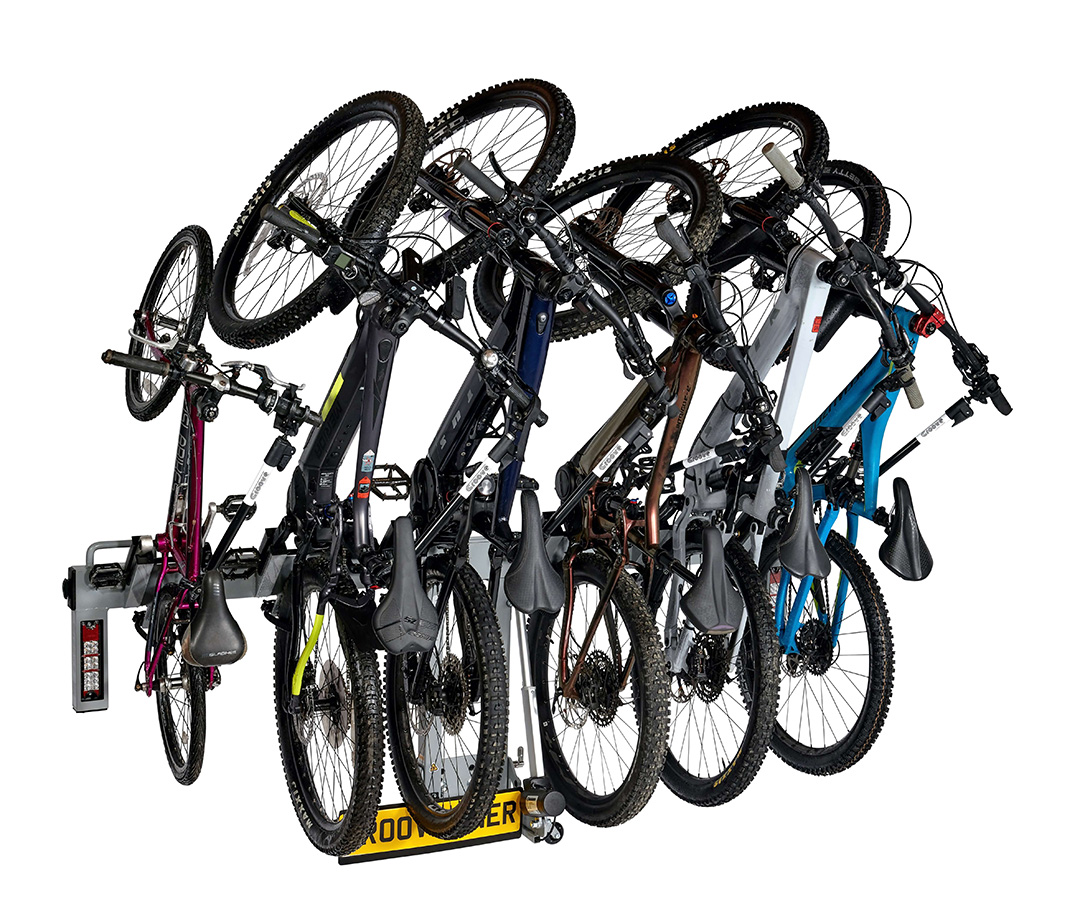

Grooveliner ®  Six Bike Rack

Please contact us for a free consultation before purchase. We offer a free fitting service at our location in Cheshire. If this does not suit please contact us for alternative options.
*All hitch styles available as an optional accessory, total load capacity of any of our racks is reduced to 70kg (154lbs) with towball mount.



Select Your Options:

Specifications

Max Number of bikes or useable grooves
Six
Rack Weight
Electric assist loading rack is: 24kg / 53lbs, Gas assist loading rack is: 22kg
Load Capacity (excluding ball mount)
40kg per crank groove
Dimensions in mm |without hitch attachment|
2086w x 910h x 320d
Max Tyre Width
3 inches
Max wheelbase
1500mm or greater
Detachable Handlebar holders
Yes
Distance Between bikes
> 29 cm (11.5 inches)
Rear Wheel Fixation
Quick release ratchet straps
Fits car with spare rear tyre
Yes
Rack Tilt function with bikes
Yes assisted loading
Rear Rack lighting
Yes
Power Connector
13 Pin EU / UK and rest of World
USA 7 Pin standard connector
Lockable to Vehicle
Yes
Hitch requirements
Flange Mount Towbar / Two Inch American Style Receiver, Tow ball mount*
Specification subject to change without notice
